型號	SJ-100
產地	浙江
電壓	220V
功率	5W
適用原料	PE
執行標準	國標
品牌	華瑞塑機
螺桿數	單螺桿
準入認證	3C認證



類型	造粒機	適用原料	其他
產品別名	子母式塑料造粒機	產品用途	用于造吹膜原料
電動機功率	7.5（kw）	外形尺寸	2000 1500 1400（mm）

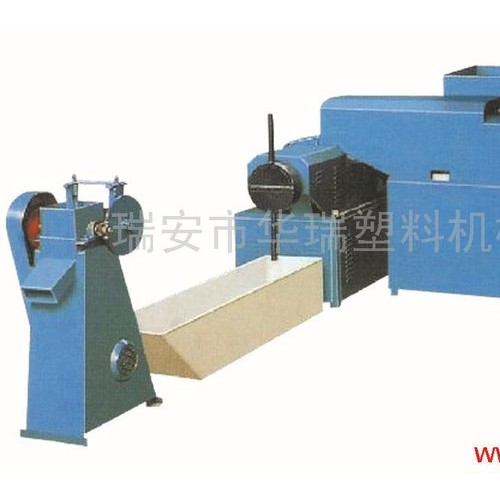

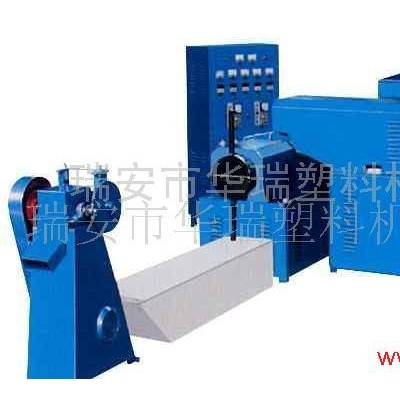

    SJ-100型子母式造粒機配置如下：SJ-100 Model Double-stage plastic regenerative pelletizer1、主機：main machine螺桿直徑：Screw Diameter 97mm齒輪箱：gear box 350型   螺桿長度：Screw length 1050米轉速：Screw speed 70轉/分鐘(r/min)   電機：electrical machine15kwHeating power about :15KW           Screw L/D: 22:12、副機assistant machine:齒輪箱：gear box 350型螺桿直徑：Screw Diameter 95mm       轉速：Screw speed 70轉/分鐘(r/min)螺桿長度：Screw length 0.7米      電機：electrical machine7.5KWHeating power about:10KW3、中型切粒機middling ofchipparticlemachine:電動電機：electricalmotor :1.1kw電控箱：水箱加熱圈全齊，(electrical control machine,water tank sutogamy)產量：output 70-90公斤/小時(kg/h)Power supply 3 phase with 380 voltages 50 HZType :water cooling systemTemp control: main machine by 3points that assistant machine by 2 points control.The machine heater temperature can achiving 240℃整機包括：主機，副機，水箱，切粒機(this machine included:main machine ,assistant machine,water tank,chipparticlemachine)
